Corner Panel

Corner Panels

Polyurethane filled

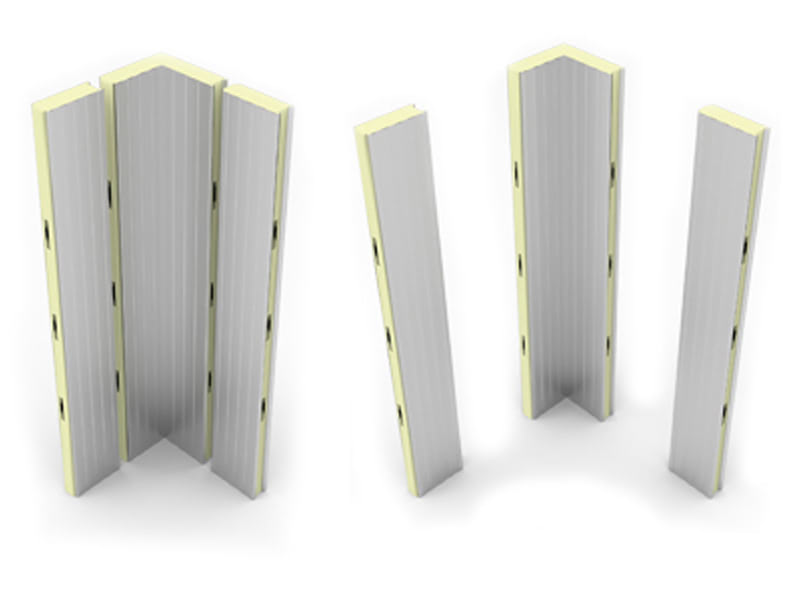

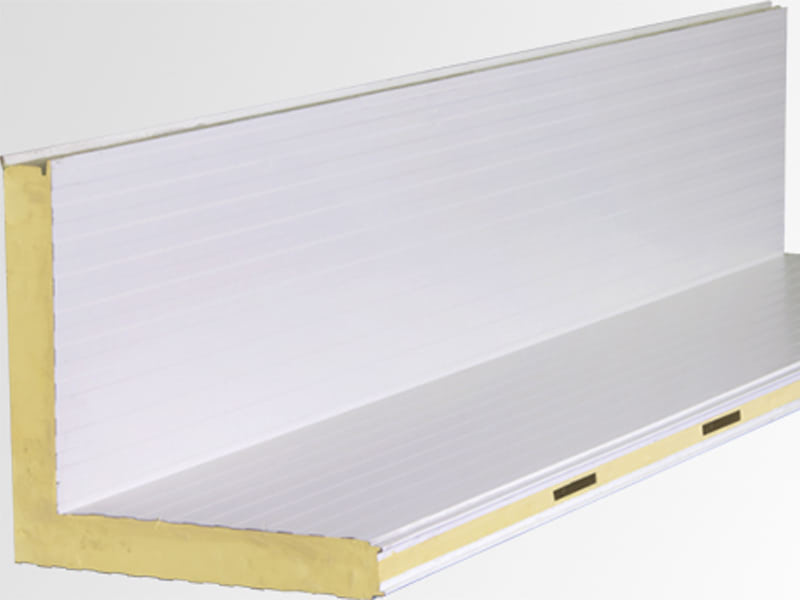

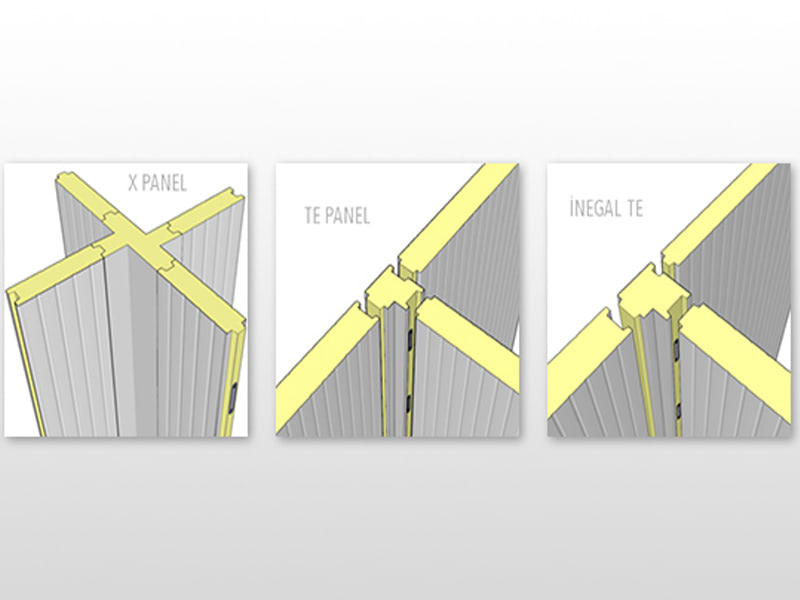

Corner panels are used to join corners in your cold rooms. In this way, without the need to cut the panels that will form the corner, the formation of heat bridges is not allowed, and the installation can be achieved by locking them together practically and flexibly. You can also use Te, Ze and X panels to make all the corner turns you may need for your cold rooms.

Panel Width: Ze, Te and X Panel
Panel Thickness: 80 - 200 mm
Panel Length: 3.5 m
Sheet Thickness: 0.5mm
Thermal Conductivity: ≤ 0.023 W / m.K
Sound Insulation: 21.5 d B
Density: 40 - 42 kg / m3
  • Technical details
  • Surface Sheet
  • Lock Detail
  • Connection Detail
  • Installation Detail
Property Value
Insulation Material Polyurethane (PUR)
Insulation Thickness 50 60 80 100 120 150 180 200
R Value (h· t² ° F / Btu) 16 19 21 26 31 39 42 52
U Value (W/m2 K) 0,36 0,32 0,27 0,22 0,18 0,15 0,12 0,11
Insulation Density 40-42 kg / m 3 (Standard)
Flammability Class B s2 d0 (TS EN 13501-1)
Outer Surface Polyester, PVC, Galvanized or CrNi

Sandwich panels produced with eccentric lock system can be easily combined thanks to this system. Thanks to the male-female joint detail between the two joint surfaces, a perfect, heat-bridged, leak-proof joint is provided after application.

With the interlocking of the sandwich panels thanks to their male female form, no intermediate connection elements are needed, so its installation is quick and practical.

Sandwich panels can be easily applied in steel constructions or reinforced concrete buildings thanks to their modular structure.
