Flat Sandwich Panel

Flat Sandwich Panel

Poliüretan (PUR) Yalıtımlı

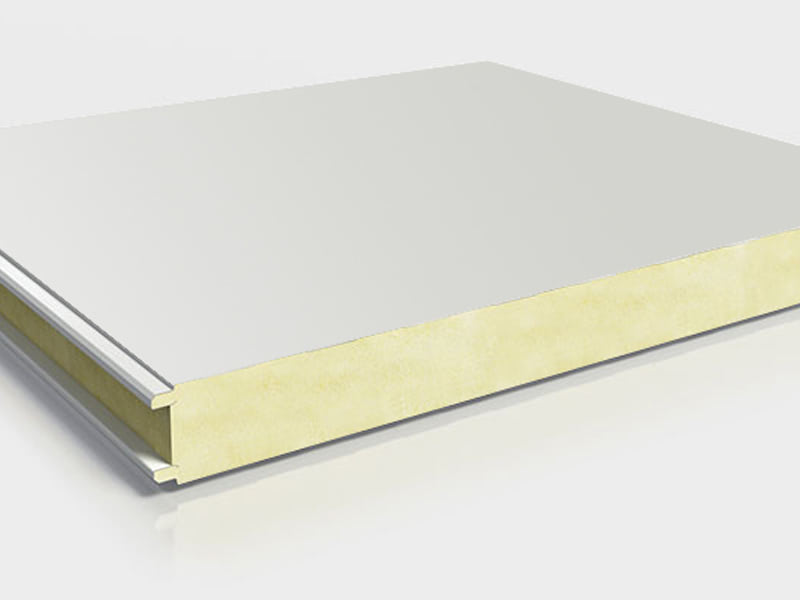

Flat surfaced sandwich panels are produced without forming on the surface sheet. It is preferred to create a hygienic environment due to the absence of grooves on the panel surface. The lock system is available in 80 mm and thicker panels.

Panel Width: 1200 mm
Panel Thickness: 50 - 200 mm
Panel Length: 13.5 m
Sheet Thickness: 0.5mm
Thermal Conductivity: ≤ 0.023 W / m.K
Sound Insulation: 21.5 d B
Density: 40 - 42 kg / m3
  • Technical Details
  • Surface Sheet
  • Lock Detail

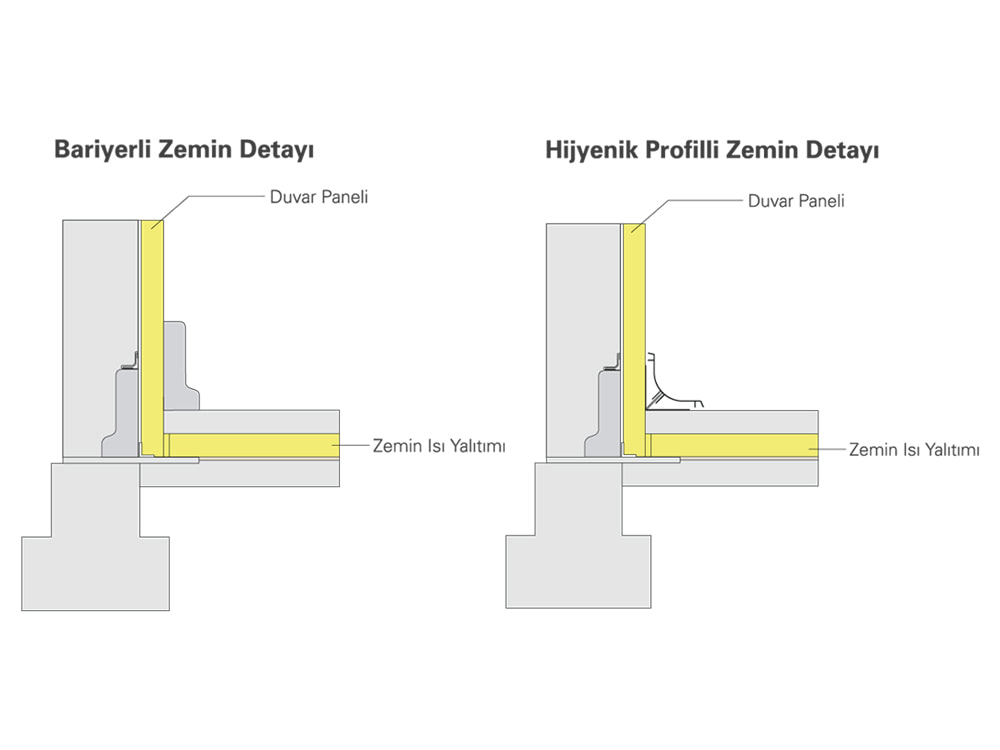

  • Junction Detail
  • Setup Detail
Property Value
Insulation Material Polyurethane (PUR)
Insulation Thickness 50 60 80 100 120 150 180 200
R Value (h·ft²·°F/Btu) 16 19 21 26 31 39 42 52
U Value (W/m2 K) 0,36 0,32 0,27 0,22 0,18 0,15 0,12 0,11
Insulation Density 40-42 kg / m 3 (Standard)
Flammability Class B s2 d0 (TS EN 13501-1)
Outer Surface Polyester, PVC, Galvaniz veya CrNi

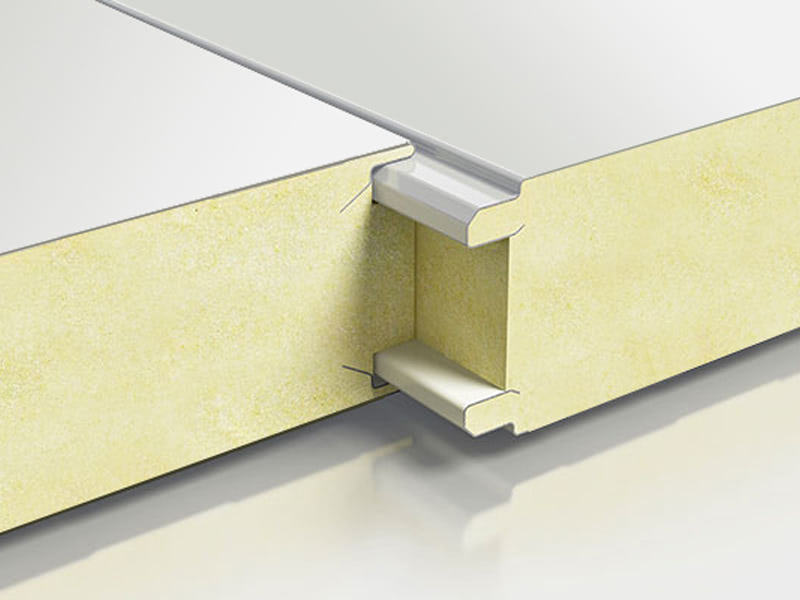

Sandwich panels produced with eccentric lock system can be easily combined thanks to this system. Thanks to the male-female joint detail between the two joint surfaces, a perfect, heat-bridged, leak-proof joint is provided after application.

With the interlocking of the sandwich panels thanks to their male female form, no intermediate connection elements are needed, so its installation is quick and practical.

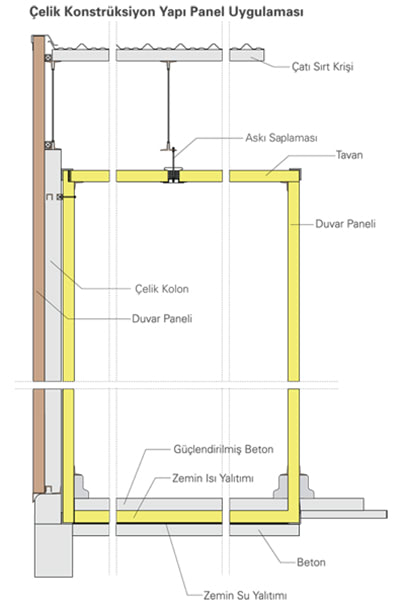

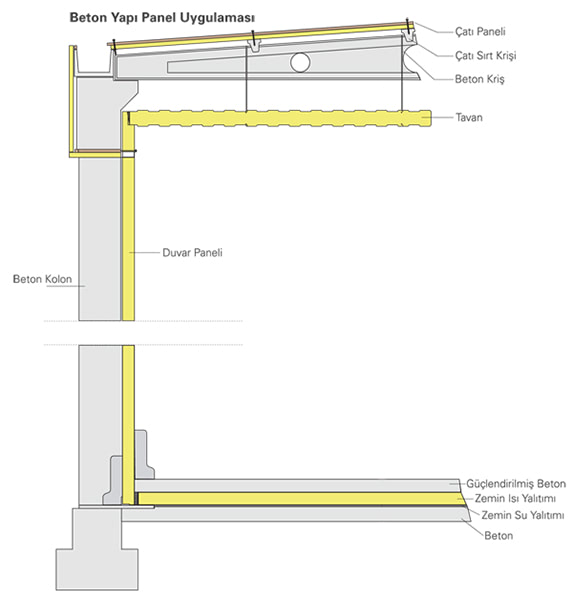

Sandwich panels can be easily applied in steel constructions or reinforced concrete buildings thanks to their modular structure.
