These are the profiles used in the assembly of floor, wall and ceiling panels to each other.
Profiles can be PVC or polyester coated galvanized sheet or CrNi depending on the panel surface.

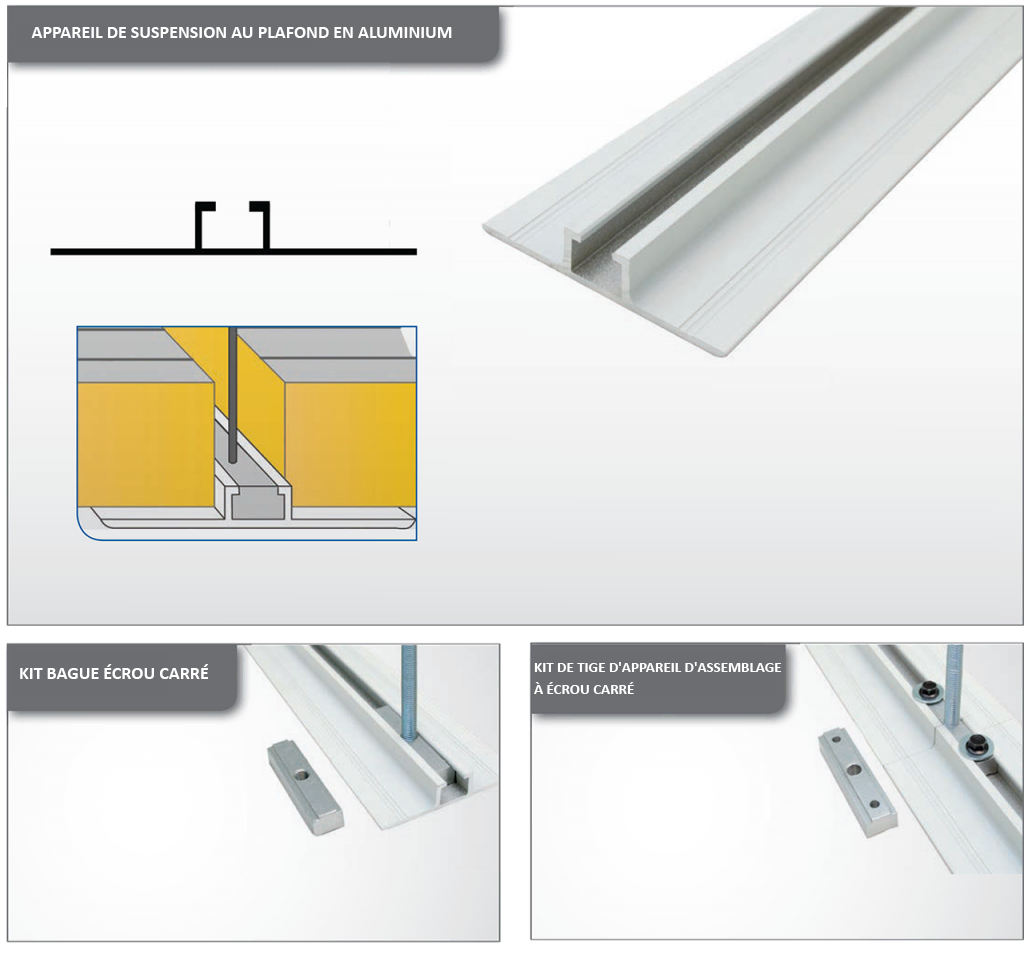

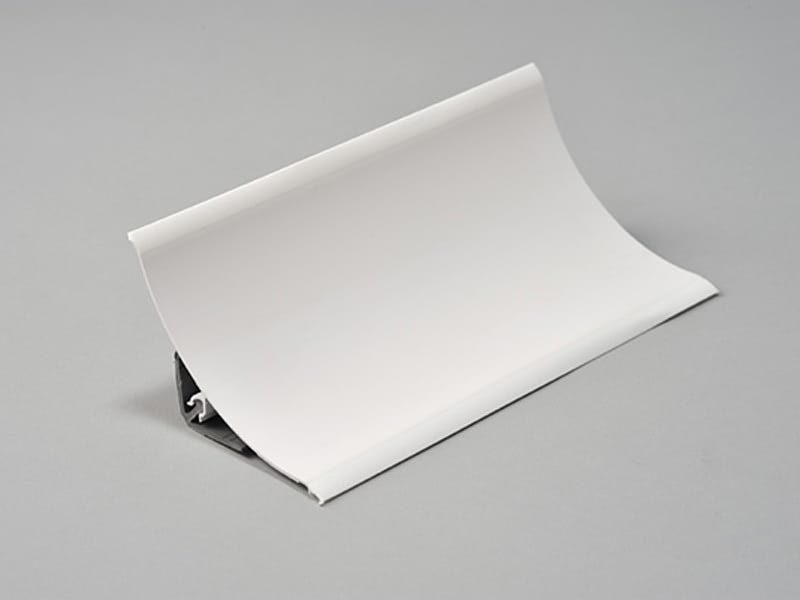

Mounting profiles are accessories of various sizes and features developed to adjust the floor seating arrangement of the panels in cold room installation, to eliminate the image pollution that may occur at the edge and corner joints, to provide hygiene and to install ceiling panels.
Mounting Profile Dimensions According to Panel Thicknesses
| Profile Types | 50 | 60 | 80 | 100 | 120 | 150 | 180 | 200 |
|---|---|---|---|---|---|---|---|---|

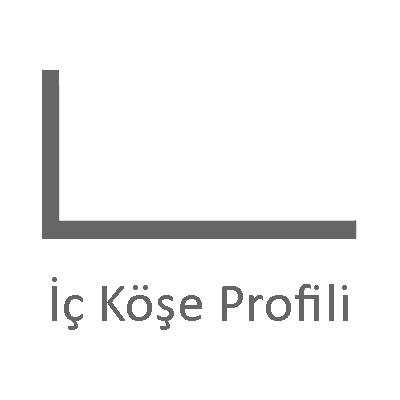

| Inner corner | 40x40 | 40x40 | 40x40 | 40x40 | 40x40 | 40x40 | 40x40 | 40x40 |

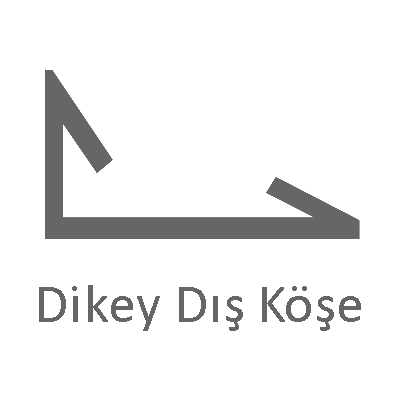

| Vertical Outer Corner | 50x80 | 50x90 | 50x110 | 50x130 | 50x150 | 50x180 | 50x210 | 50x230 |
| Horizontal Outer Corner | 50x80 | 50x50 | 50x60 | 50x80 | 50x80 | 50x80 | 50x80 | 50x110 |
| U Profil | 40x50x40 | 40x60x40 | 40x80x40 | 40x100x40 | 40x120x40 | 40x150x40 | 40x180x40 | 40x200x40 |
| Strip | According to requirements, could be produced as 100 - 120 - 150 mm widthness | |||||||
